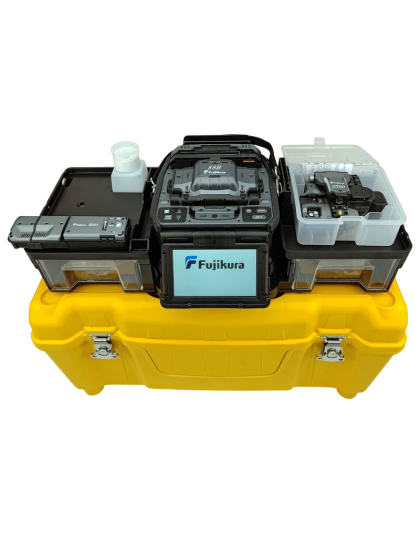

Fujikura FSM-88R12 Ribbon Fusion Splicer: Complete Specifications & Feature
FUJIKURA
$6,899.00 Inc Tax
Why Choose Fujikura FSM-88R12 for NBN Projects?
The Fujikura FSM-88R12 ribbon mass fusion splicer is the industry-leading solution for NBN (National Broadband Network) fiber optic installations across Australia. This professional-grade splicer delivers exceptional performance for telecommunications contractors handling high-volume fiber deployments.
Technical Specifications: FSM-88R12 Features
Core Performance Metrics
| Specification | Details |
|---|---|
| Ribbon Capacity | Up to 12-fiber ribbons |
| Splice Time | 7-13 seconds per splice |
| Splice Loss | <0.02 dB typical |
| Fiber Types | SM, MM, DSF, NZDSF |
| Operating Temperature | -10°C to +50°C |
| Battery Life | 200+ splices per charge |
| Weight | 1.9 kg |
Advanced Features
- Automatic fiber alignment for consistent results
- Real-time splice loss estimation
- Weather-resistant design (IP54 rating)
- Large 5.7" LCD touchscreen
- Built-in data management system
NBN Installation Applications
Primary Use Cases
- FTTP (Fiber-to-the-Premises) connections
- Multi-dwelling unit (MDU) installations
- Business fiber deployments
- Network expansion projects
- Maintenance and repair operations
Compatible NBN Infrastructure
- Distribution hubs
- Fiber access nodes (FANs)
- Premises connection devices (PCDs)
- Network termination devices (NTDs)
Step-by-Step Operation Guide
Pre-Splice Preparation
- Power on the FSM-88R12 splicer
- Select ribbon configuration (2, 4, 6, 8, or 12 fibers)
- Clean fiber ribbons using appropriate cleaning tools
- Strip fiber jackets to manufacturer specifications
Splicing Process
- Load ribbons into splice holders
- Initiate automatic alignment sequence
- Review splice preview on LCD display
- Execute fusion splice (7-13 seconds)
- Apply heat shrink protection
- Store splice data for documentation
FSM-88R12 vs Competitors Comparison
| Feature | Fujikura FSM-88R12 | Sumitomo T-400S | INNO View-12R |
|---|---|---|---|
| Splice Time | 7-13 sec | 9-15 sec | 10-16 sec |
| Splice Loss | <0.02 dB | <0.03 dB | <0.04 dB |
| Battery Life | 200+ splices | 150+ splices | 180+ splices |
Authorized Australian Dealers
- Fujikura Australia (Official distributor)
- Telstra Business Equipment
- NBN Co approved suppliers
- Regional telecommunications equipment vendors
Maintenance and Troubleshooting
Regular Maintenance Schedule
- Daily: Clean electrodes and V-grooves
- Weekly: Calibrate arc power settings
- Monthly: Update firmware and backup data
- Quarterly: Professional service inspection
Common Issues and Solutions
- High splice loss: Check fiber cleanliness and alignment
- Arc instability: Clean electrodes, check power settings
- Battery issues: Calibrate battery, replace if necessary
- Display problems: Update firmware, check connections
Training and Certification
Required Qualifications
- ACMA cabling license (Australia)
- Fujikura certified technician training
- NBN Co approved installer status
- Workplace safety certification
Training Providers
- Fujikura Training Centers
- TAFE institutes
- Private telecommunications training providers
- Online certification programs
ROI Calculator: FSM-88R12 Investment Analysis
Cost Savings vs Single-Fiber Splicing
- Time savings: 75% faster than individual fiber splicing
- Labor cost reduction: $50-$80 per splice hour saved
- Project completion: 3-5x faster deployment times
- Quality improvement: Reduced rework and callbacks
Frequently Asked Questions (FAQ)
Q: Is the FSM-88R12 suitable for NBN FTTP installations?
A: Yes, the FSM-88R12 is specifically designed for high-density fiber installations like NBN FTTP projects, offering excellent performance for 12-fiber ribbon splicing.
Q: What's the typical splice loss for NBN applications?
A: The FSM-88R12 achieves splice losses of <0.02 dB, well within NBN technical specifications for fiber connections.
Q: How long does the battery last during field operations?
A: The battery provides power for 200+ splices per charge, sufficient for a full day of NBN installation work.
Q: Is training required to operate the FSM-88R12?
A: Yes, Fujikura certification and ACMA cabling licensing are recommended for professional NBN installations.
Q: What warranty coverage is available?
A: Standard 2-year manufacturer warranty, with extended service plans available through authorized dealers.
Maximizing NBN Installation Efficiency
The Fujikura FSM-88R12 ribbon fusion splicer represents the gold standard for NBN fiber optic installations. Its combination of speed, accuracy, and reliability makes it an essential tool for telecommunications contractors serious about delivering quality NBN services across Australia.
For NBN projects requiring high-volume, consistent fiber splicing, the FSM-88R12 delivers unmatched performance and long-term value. Contact authorized dealers for pricing, training, and support to maximize your NBN installation capabilities.
- Availability: 3 In Stock
- Model: FSM-88R12
-
Brand:
