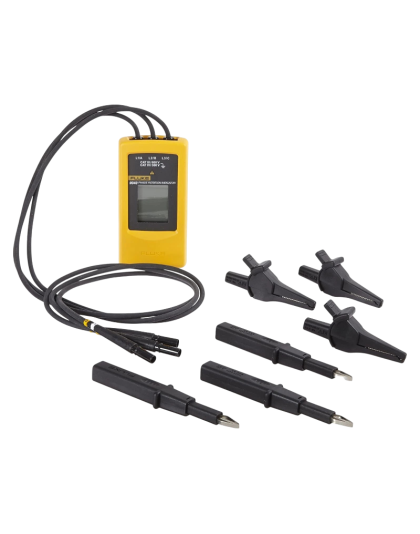

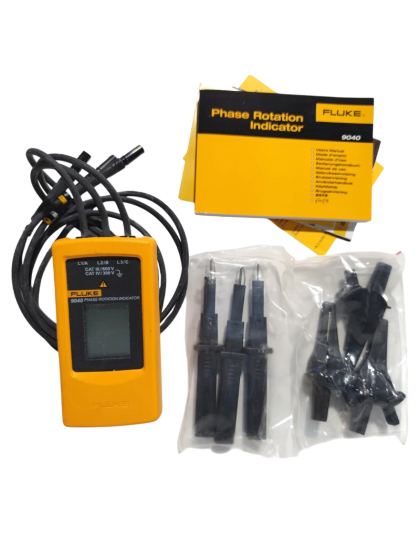

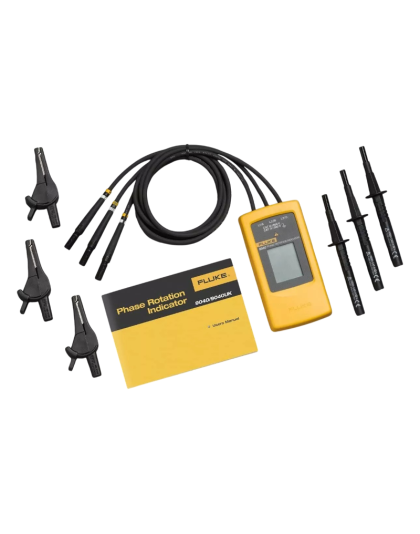

Fluke 9040 Digital Phase Rotation Indicator Tester
The Fluke 9040 Digital Phase Rotation Indicator Tester delivers reliable, accurate phase sequence identification for three-phase electrical systems.
Essential Phase Sequence Verification
Phase rotation verification is critical for three-phase motor applications, as incorrect phase sequence can cause motors to rotate in reverse direction, potentially damaging equipment and creating safety hazards. The Fluke 9040 provides immediate, accurate phase sequence identification to prevent costly mistakes and ensure proper system operation.
Primary Functions:
-
Phase Presence Verification:
Confirms all three phases are present and active
-
Voltage Level Indication:
Displays approximate voltage levels for system verification
-
Non-Contact Testing:
Safe operation without direct electrical connection
Advanced Digital Technology
Technical Capabilities:
-
Voltage Range:
Operates from 40V to 700V AC for versatile application compatibility
-
Frequency Range:
Functions across 15Hz to 400Hz for various power system frequencies
-
Digital Display:
Clear LED indicators show phase sequence and system status
-
Automatic Detection:
Instantaneous phase sequence identification upon connection
Professional Applications
Motor Installation and Commissioning
During motor installation, proper phase sequence verification prevents reverse rotation that could damage pumps, fans, compressors, and other rotating equipment. The Fluke 9040 ensures correct wiring before energizing expensive machinery.
Maintenance and Troubleshooting
When motors exhibit unexpected rotation direction or performance issues, the tester quickly identifies phase sequence problems, enabling rapid diagnosis and correction of wiring errors.
Electrical Panel Verification
During electrical panel modifications or expansions, the device confirms phase sequence consistency throughout the distribution system, preventing downstream equipment problems.
Generator and UPS Systems
Backup power systems require proper phase sequence to ensure seamless transfer and correct operation of connected equipment. The tester verifies generator and UPS output phase rotation.
Safety and Reliability Features
Non-Contact Operation
This design enhances operator safety while providing reliable measurements.
Robust Construction
Built to withstand demanding industrial environments, the tester features durable housing and components designed for long-term reliability in harsh conditions.
Automatic Safety Features
Built-in protection circuits prevent damage from voltage transients and ensure safe operation across the specified voltage range.
Operational Advantages
Immediate Results
Unlike mechanical rotation indicators that require time to stabilize, the digital design provides instant phase sequence indication, improving work efficiency and reducing testing time.
Portable Design
Compact, lightweight construction enables easy transport and use in confined spaces or elevated work areas.
Battery Operation
Self-contained battery power eliminates dependence on external power sources, ensuring reliable operation in any location.
Technical Specifications
Electrical Parameters
-
Operating Voltage Range:
40V to 700V AC
-
Frequency Response:
15Hz to 400Hz
-
Phase Detection Accuracy:
Better than 1 degree phase resolution
-
Input Impedance:
High impedance design minimizes circuit loading
Physical Characteristics
-
Display Type:
Multi-color LED indicators for clear phase sequence identification
-
Housing Material:
Impact-resistant plastic construction
-
Dimensions:
Compact form factor for portable operation
-
Weight:
Lightweight design for extended use without fatigue
Environmental Specifications
-
Operating Temperature:
Wide temperature range for diverse working conditions
-
Humidity Tolerance:
Sealed construction protects against moisture
-
Vibration Resistance:
Robust design withstands industrial environments
Installation and Operation Procedures
Pre-Testing Verification
Before conducting phase rotation testing, verify that all three phases are present and that voltage levels are within the acceptable range. The Fluke 9040 provides indication of missing phases or voltage imbalances that could affect test accuracy.
Connection Methods
The tester accommodates various connection methods, including direct connection to motor terminals, panel bus bars, or distribution points. Proper connection ensures accurate phase sequence detection.
Result Interpretation
Clear LED indicators eliminate guesswork in result interpretation. Clockwise rotation indication confirms proper phase sequence for standard motor applications, while counterclockwise indication identifies reversed phase sequence requiring correction.
Documentation and Reporting
Test results should be documented for quality assurance and maintenance records.
Preventive Maintenance Applications
Scheduled System Verification
Regular phase sequence verification as part of preventive maintenance programs helps identify wiring changes or degradation that could affect equipment operation.
Post-Maintenance Confirmation
After electrical maintenance activities, phase rotation testing confirms that proper phase sequence has been maintained and that no inadvertent wiring changes have occurred.
New Installation Commissioning
During commissioning of new electrical installations, comprehensive phase sequence verification ensures that all three-phase equipment will operate correctly from initial startup.
Troubleshooting Support
When investigating equipment performance issues, phase sequence verification eliminates phase rotation as a potential cause, focusing troubleshooting efforts on other system components.
Industry Standards Compliance
The Fluke 9040 meets relevant industry standards for electrical test equipment, ensuring reliable performance and acceptance in professional applications. Compliance with safety standards provides confidence in operator protection and equipment reliability.
Standards Adherence:
-
CAT Safety Ratings:
Appropriate safety category ratings for intended applications
-
EMC Compliance:
Electromagnetic compatibility for reliable operation in electrical environments
-
Quality Standards:
Manufacturing quality standards ensuring consistent performance
Essential Tool for Three-Phase System Management
Its combination of digital accuracy, safety features, and operational convenience makes it indispensable for motor installation, maintenance, and troubleshooting applications.
