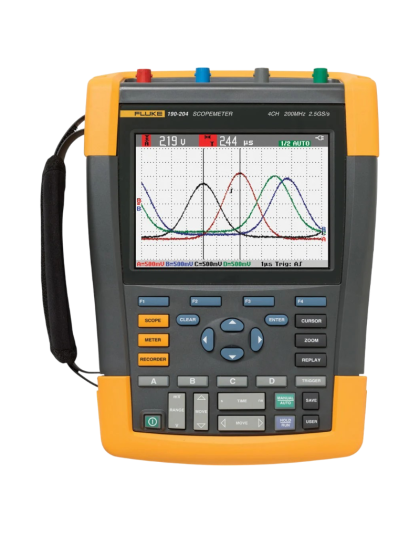

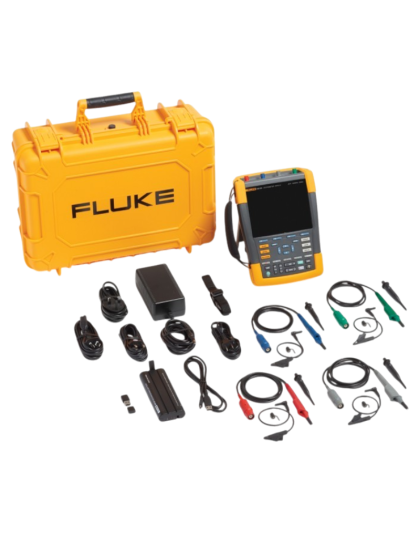

Fluke 190-204/AM/S ScopeMeter with Software
The Fluke 190-204/AM/S ScopeMeter represents the convergence of advanced oscilloscope technology with rugged portability, delivering professional-grade waveform analysis capabilities in a compact, field-ready instrument. This sophisticated 4-channel digital storage oscilloscope combines high-performance measurement capabilities with comprehensive software integration for complete signal analysis solutions.
Digital Storage Oscilloscope Technology
The ScopeMeter incorporates state-of-the-art digital signal processing technology to capture, analyze, and display complex electrical waveforms with exceptional accuracy and resolution. Advanced triggering capabilities and high-speed sampling ensure reliable capture of transient events and complex signal patterns.
Core Oscilloscope Specifications:
-
Bandwidth:
200 MHz analog bandwidth for high-frequency signal analysis
-
Sampling Rate:
Up to 2.5 GS/s real-time sampling for precise waveform capture
-

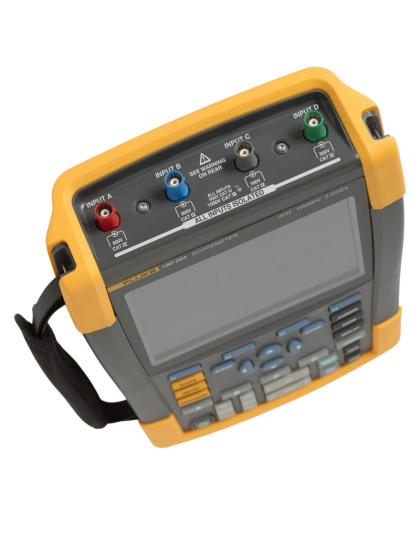

Channels:
Four independent input channels for multi-signal analysis
-
Memory Depth:
Extended record length for detailed waveform analysis
Measurement Capabilities
Integrated Measurement Functions:
-
Digital Multimeter:
True RMS voltage, current, resistance, and frequency measurements
-
Data Logger:
Long-term signal recording and trend analysis
-
Spectrum Analysis:
Frequency domain analysis for signal characterization
-
Power Analysis:
Comprehensive power measurement and harmonic analysis
Professional Industrial Applications
Electronic Circuit Development and Debug
Engineers utilize the ScopeMeter for circuit design verification, prototype testing, and troubleshooting complex electronic systems.
Industrial Equipment Maintenance
Maintenance technicians employ the instrument for diagnosing motor drives, power supplies, control systems, and other industrial equipment. Portable design enables testing in confined spaces and harsh environments.
Automotive Electronics Testing
Automotive technicians use the ScopeMeter for analyzing ignition systems, fuel injection circuits, sensor signals, and electronic control modules. Rugged construction withstands demanding automotive service environments.
Power System Analysis
Electrical professionals utilize the instrument for power quality analysis, harmonic measurement, and electrical system troubleshooting in industrial and commercial facilities.
Software Integration
FlukeView Software Package
The included FlukeView software transforms measurement data into comprehensive reports and enables advanced analysis capabilities not available on the instrument alone.
Software Capabilities:
-
Waveform Analysis:
Advanced mathematical functions and signal processing
-
Report Generation:
Professional documentation with graphs, tables, and analysis
-
Data Management:
Comprehensive database for measurement storage and retrieval
-
Remote Control:
PC-based instrument control and automated testing
Connectivity and Data Transfer
Multiple connectivity options enable seamless integration with computer systems and network environments for data sharing and collaborative analysis.
Connection Options:
-
USB Interface:
High-speed data transfer and instrument control
-
Ethernet Port:
Network connectivity for remote access and data sharing
-
Wireless Capability:
Optional wireless modules for untethered operation
-
Memory Card Support:
Removable storage for extended data logging
Rugged Portable Design
Industrial-Grade Construction
The ScopeMeter features robust construction designed to withstand demanding industrial environments while maintaining measurement accuracy and reliability.
Durability Features:
-
Shock Resistance:
Impact-resistant housing protects internal components
-
Environmental Sealing:
Protection against dust, moisture, and contaminants
-
Temperature Range:
Wide operating temperature range for diverse conditions
-
EMI Immunity:
Electromagnetic interference resistance for accurate measurements
Ergonomic Operation
Thoughtful design elements enhance usability during extended measurement sessions and in challenging work environments.
User Interface Features:
-
Color Display:
High-resolution screen with clear waveform presentation
-
Intuitive Controls:
Logical button layout and menu structure
-
Battery Operation:
Extended battery life for portable applications
-
Hands-Free Operation:

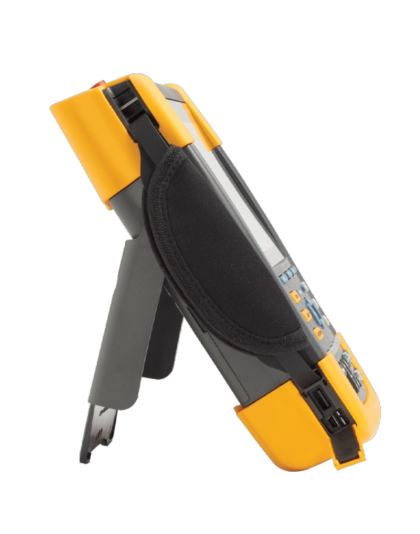

Magnetic hanging system and tilt stand
Triggering and Analysis
Trigger Options:
-
Edge Triggering:
Standard rising and falling edge detection
-
Pulse Width Triggering:
Capture of specific pulse duration events
-
Video Triggering:
Television and video signal synchronization
-
External Triggering:
Synchronization with external signal sources
Mathematical Analysis Functions
Built-in mathematical capabilities enable real-time waveform analysis and signal processing without requiring external software.
Analysis Functions:
-
FFT Analysis:
Frequency domain analysis with windowing options
-
Waveform Math:
Addition, subtraction, multiplication, and integration
-
Statistical Analysis:
Min/max, average, and standard deviation calculations
-
Cursor Measurements:
Precise amplitude and time measurements
Power Analysis Capabilities
Comprehensive Power Measurements
The ScopeMeter provides detailed power analysis capabilities essential for modern power electronics and motor drive applications.
Power Analysis Features:
-
Real Power Measurement:
Accurate true power calculations
-
Reactive Power Analysis:
VAR measurements for power factor analysis
-
Harmonic Analysis:
Individual harmonic measurement up to 50th harmonic
-
Power Quality Assessment:
Voltage and current distortion analysis
Motor Drive Analysis
Specialized functions support analysis of variable frequency drives and motor control systems, critical for industrial maintenance applications.
Motor Drive Functions:
-
PWM Analysis:
Pulse width modulation signal characterization
-
Inverter Output Analysis:
Three-phase output measurement and analysis
-
Motor Current Analysis:
Current signature analysis for fault detection
-
Efficiency Calculations:
Motor and drive efficiency measurements
Data Logging
Long-Term Data Recording
Extended data logging capabilities enable monitoring of signal trends and intermittent problems over extended periods.
Data Logging Features:
-
Continuous Recording:
Uninterrupted data capture for trend analysis
-
Triggered Recording:
Event-based data capture for intermittent problems
-
Multiple Channel Logging:
Simultaneous recording of multiple signals
-
Timestamp Information:
Precise time correlation for event analysis
Quality Assurance
Measurement Accuracy
The ScopeMeter maintains calibrated performance through precision analog components and advanced digital signal processing algorithms.
Accuracy Specifications:
-
Voltage Accuracy:
Traceable calibration standards for reliable measurements
-
Time Base Accuracy:
Crystal-controlled timebase for precise timing measurements
-
Frequency Response:
Flat frequency response across specified bandwidth
-
Dynamic Range:
High resolution for small signal analysis
Return on Investment Analysis
Productivity Enhancement
The combination of multiple measurement functions in a single instrument reduces equipment costs and simplifies test setups, improving technician productivity and reducing measurement time.
Maintenance Efficiency
Advanced troubleshooting capabilities enable faster problem identification and resolution, reducing equipment downtime and maintenance costs.
Documentation and Compliance
Comprehensive reporting capabilities support quality assurance programs and regulatory compliance requirements while reducing administrative overhead.
Industry Standards Compliance
The Fluke 190-204/AM/S meets relevant industry standards for electronic test equipment, ensuring measurement reliability and acceptance in professional applications.
Standards Compliance:
-
Safety Standards:
International safety requirements for electronic test equipment
-
EMC Standards:
Electromagnetic compatibility for reliable operation
-
Quality Standards:
Manufacturing quality standards ensuring consistent performance
-
Calibration Standards:
Traceable measurement standards for accuracy verification
