Digital Microhmmeter - Megger DLRO600
MEGGER

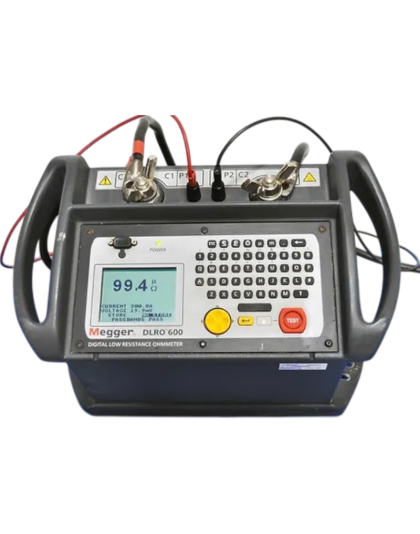

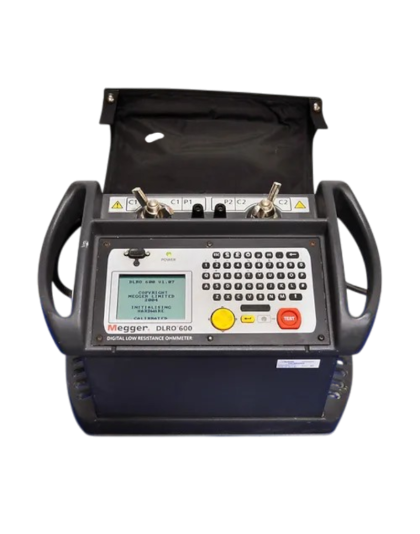

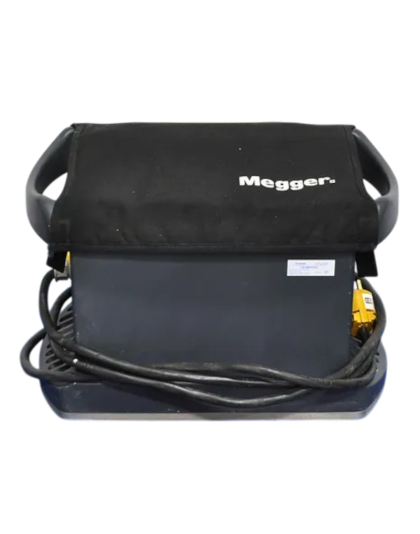

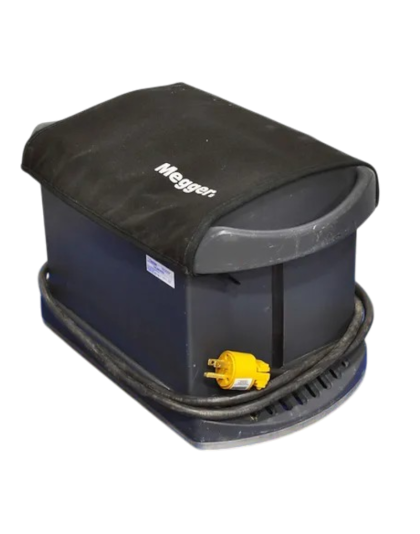

Megger DLRO600. Delivering test currents up to 600 A DC, this lightweight, portable microhmmeter is perfect for testing circuit breaker contacts, busbar joints, and high-current electrical connections. With its wide measurement range, four-terminal accuracy, and user-friendly interface, the DLRO600 ensures reliable and efficient diagnostics for both field and workshop use.
$5,000.00
The Megger DLRO600 600A Digital Microhmmeter is a high-performance, portable instrument designed for precise low-resistance measurements in various electrical systems. It offers test currents ranging from 10 A to 600 A DC, making it suitable for applications such as testing circuit breaker contacts, switch contacts, busbar joints, and other high-current connections.
Key Features
Wide Measurement Range: Measures resistances between 0.1 μΩ and 1 Ω.
High Test Currents: Provides test currents from 10 A up to 600 A DC, depending on load resistance and supply voltage.
Four-Terminal Measurement: Utilizes a four-terminal technique to eliminate the resistance of test leads from the measurement.
Compact and Lightweight: Weighs less than 15 kg (33 lbs), enhancing portability for field use.
Data Storage: On-board memory stores up to 300 test results and notes.
Connectivity: Equipped with an RS232 port for downloading stored results or real-time output to a printer.
User-Friendly Interface: Features a large LCD screen displaying all test parameters and measurement results.
Package Contents
DLRO600 Microhmmeter Unit
16.4 ft (5 m) Test Leads
Download Software
User Manual
Technical Specifications
Measurement Range: 0.1 μΩ to 1 Ω
Test Current: 10 A to 600 A DC
Resolution: 0.1 μΩ
Weight: Less than 15 kg (33 lbs)
Dimensions: 410 x 250 x 270 mm
Power Source: Mains
Safety Features: Complies with IEC61010 standards
Applications
Testing of circuit breaker contacts
Assessment of switch contacts
Evaluation of busbar joints
Inspection of high-current electrical connections
- Model: DLRO600
-
